| Model | ZL38-40 | ||||||||
| Working Voltage Range | DC;6-24V | ||||||||
| Rating Power | 6V：2-12W / 12V：3-18W / 24V：5-25W | ||||||||
| Static Water Head | 1-7M | ||||||||
| Static flow rate | 4-7.5Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000H | ||||||||
| Working Environment | PH value：PH5-10（Weak acid and weak base）、Submersible pump | ||||||||
| Max Noise | Continuous operation under normal working condition (water pump is 1m away from the tester)＜40dB | ||||||||
| Max Working Temperature | At room temperature, the temperature of the aqueous medium≤70℃ | ||||||||
| Application | Tourism shower, RV, bathroom toilet, aquarium, etc | ||||||||

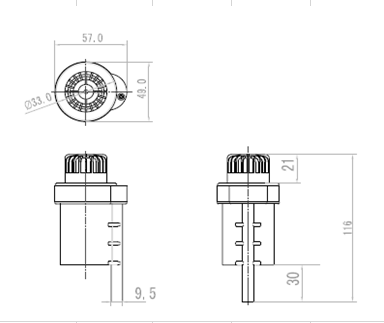

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length (mm) | Width (mm) | Height (mm) | OD (mm) | ID (mm) | OD (mm) | ID (mm) | Inlet Filter hood | ||
| 57 | 49 | 110 | IP68 | φ33 | φ25 | φ9.5 | φ6 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
