| Model | ZL50-12 | ||||||||
| Working Voltage Range | DC：6-24V | ||||||||
| Rating Power | 6V：10-15W / 12V：10-30W / 24V：20-60W | ||||||||
| Static Water Head | 1-6M | ||||||||
| Static flow rate | 11-32Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000hour | ||||||||
| Working Environment | Applicable liquid pH: weak acid, neutral, weak base. Non diving use | ||||||||
| Max Noise | Under normal working condition, the distance between water pump and tester is less than 45dB | ||||||||
| Max Working Temperature | Under normal temperature environment, the temperature of the aqueous medium≤70℃ | ||||||||
| Application | Sewage pump、Milling machine, drilling machine, lathe, water heater heat dissipation, oil-water separation, etc. | ||||||||

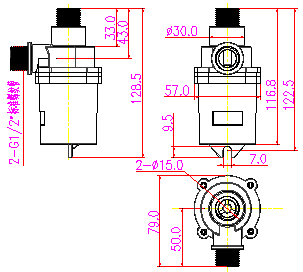

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length (mm) | Width (mm) | Height (mm) | OD (inch) | ID (mm) | OD (inch) | ID (mm) | Inlet and outlet standard thread | ||
| 79 | 57 | 129 | IP67 | G1/2″ Standard threaded pipe | φ15 | G1/2″ Standard threaded pipe | φ15 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
